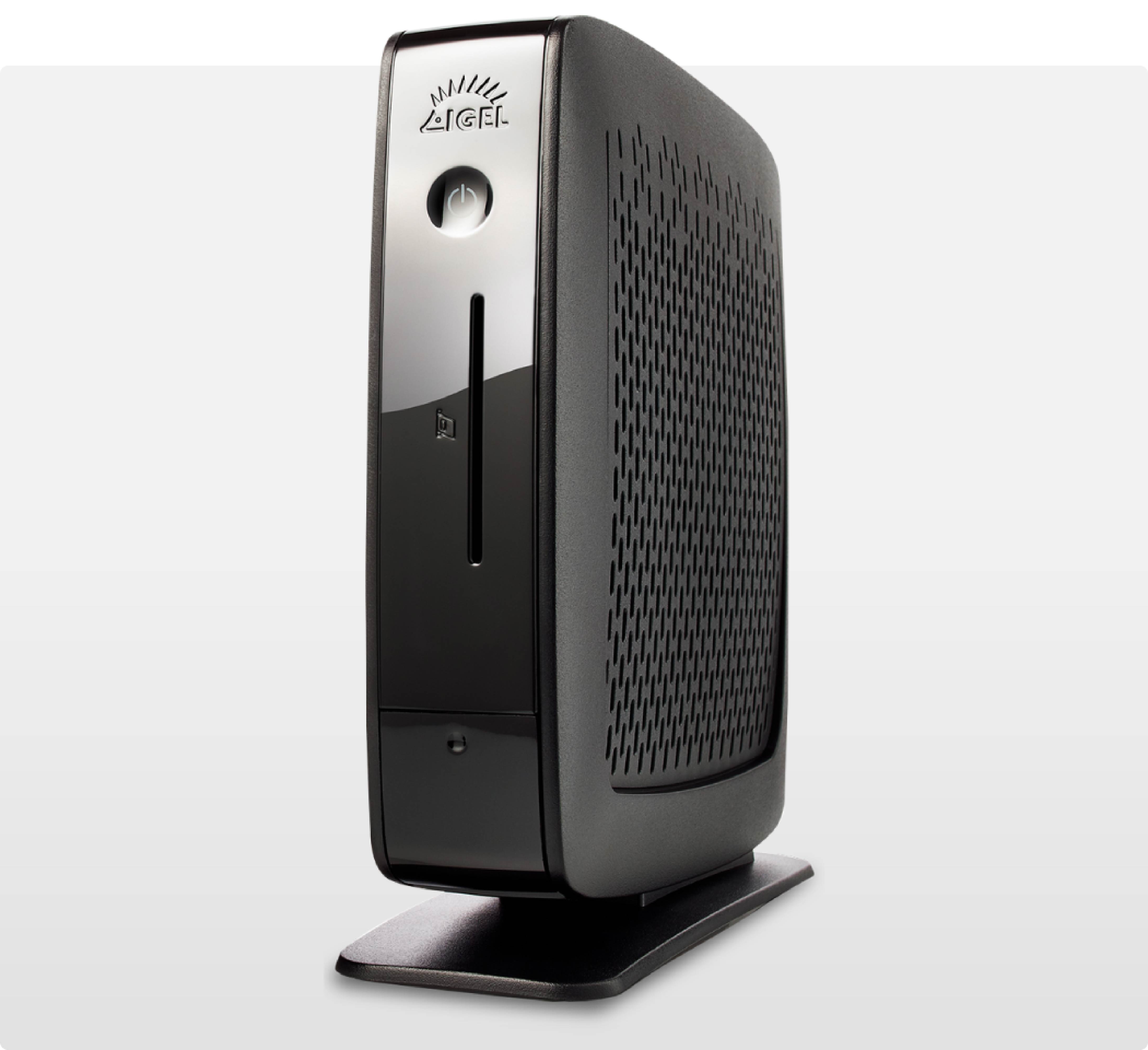

IGEL UD3 Universal Desktop Thin Client

IGEL UD3

Universal Desktop Thin Client

IGEL’s UD3 is a Universal Desktop Thin Client that is ideal for the demanding multimedia knowledge worker. The powerful UD3 series is available with an optional integrated smartcard reader and a connectivity foot that offers two additional serial ports for legacy peripherals and wireless network connectivity or an anti-theft USB port.

FREE HARDWARE

IGEL-OS

IGEL Universal Desktop Operating Systems are available both in IGEL Linux 10 and Microsoft Windows 10 IoT.

COMPARE AND FIND LATEST FIRMWARE VERSIONS

UMS

Every IGEL thin client, whether hardware or software, automatically includes the Universal Management Suite, UMS. This free, industry-leading endpoint management system lets you quickly and securely transform all endpoints into easily managed workspaces.

MORE ABOUT THE UMS SOFTWARE

  • icon

    Affordable

    A low price and high energy efficiency guarantee low TCOs and a fast ROI

  • icon

    Dualview Support

    Two display ports allow users to operate two digital monitors simultaneously. The DVI-I and DisplayPort allow one digital and one analog monitor to be connected via an adapter. With the DisplayPort, the UD3 series also supports 4K resolution.

  • icon

    Integrated smartcard reader (optional)

    Excellent for highly secure two factor authentication and fast login

  • icon

    VESA Mountable (optional)

    Mountable on the back of a monitor with the optional available VESA bracket, ideal for space constrained environments

  • icon

    Connectivity foot (optional)

    The unit can be enhanced with two additional serial ports and wireless network connectivity or an anti-theft USB port. Compatible with VESA mount.

  • icon

    No Moving Parts, e.g. Cooling Fans

    The absence of moving parts means the devices are almost noiseless and fail-safe with minimal heat generation.

Software Maintenance

Regular, free firmware updates for IGEL OS and Windows 10 IoT UD Thin Clients up to three years after they are discontinued provides maximum investment protection. Sign up for our technical newsletter to find out as soon as firmware updates are released.

Free Technical Support

Register on our ticket system ITRS for our specialized technical support. We answer your questions and solve problems in the areas of IGEL OS and Microsoft 10 IoT firmware, Universal Management Suite (UMS) and all other IGEL software solutions.

Warranty

After purchase, just register with us online, and all your IGEL Thin Clients UD2, UD3 and UD6 will be upgraded from a standard 2-year to a 5-year hardware warranty, according to our end customer hardware warranty declaration, at no additional cost. The UD Pocket, UD9, IZ2 and IZ3 series will be upgraded to a 3-year hardware warranty. The warranty upgrade does not cover any additional hardware options. View full warranty

IGEL is a registered trademark of IGEL Technology GmbH. All hardware and software names are registered trademarks of the respective manufacturers. Errors and omissions excepted. Subject to change without notice.

iz_ud3_peripherals_en
Certificates
CE, TÜV-GS, cULus, FCC Class B, ICES-003, RCM, VCCI, BSMI, CCC, WEEE, RoHS, China RoHS, Energy Star
For questions about product compliance or certification, please contact regulatory.compliance@igel.com.
Available Operating Systems
IGEL Linux 10
Microsoft Windows 10 IoT
Management
IGEL Universal Management Suite included
Form Factor
Standard Desktop
Processor
AMD Steppe Eagle GX-412HC 1,2 – 1,6 GHz (Quad-Core)
Chipset
Built in SoC
RAM (DDR3L)
2 GB (LX)
4 GB (W10)
Flash Memory (SATA SSD)
4 GB (LX)
32 GB (W10)
larger SSD modules on request
Graphics Chipset
Radeon R3E
Video Memory
128–1024 MB shared memory
Graphics Ports
1 x DVI-I
1 x DisplayPort
Supported Resolutions
1920 x 1200 (DVI)
3840 x 2160 (DisplayPort)
Ethernet
10/100/1000 Base-T
WLAN
optional (via connectivity bar)
Audio Chipset
Realtek ALC662-VD0-GR
Audio Ports
Front:
1 x line-out
1 x mic-in
Audio Speakers
1 x internal
PS/2
1 x keyboard
Serial
2 x optional (via connectivity bar)
USB 2.0
3 x back
optional: anti-theft USB (via connectivity bar)
USB 3.0
1 x back, 1 x front
Security Lock
1 x back
Device (DxWxH), upright
210 x 69 x 207 mm
Packaging (DxWxH), horizontal
325 x 110 x 280 mm
Weight
1.19 kg
Cooling
fanless convection
Operating Temperature
vertical: 0 to 35 °C
horizontal: 0 to 35 °C (with optional rubber feet)
Operating Humidity
20% – 80%, non-condensing
Input
auto sensing 100~240 VAC / 50~60 Hz
Power Supply
external
Power Consumption: Idle / Sleep / Offline Mode
8 W / 0.5 W / < 0.5 W
Typical energy consumption per year (Energy Star)
ETEC = 30,29 kWh
ETEC,MAX = 62,0 kWh
VESA Mount
for mounting on the back of a monitor (VESA75, VESA100)
Rubber Feet
for horizontal placement of the device
Connectivity Bar
Option 1: 2 x serial port and anti-theft USB port
Option 2: 2 x serial port and 802.11a/b/g/n WLAN
Built-in Smartcard Reader
for secure smartcard-based authentication
USB-to-Serial Adapter
for connecting peripherals that require a serial port
USB-to-Parallel Adapter
for connecting printers that require a parallel port
Shared WorkPlace (only UD2)
it allows user-dependent configuration based on setting profiles
Multimedia Codec Pack (only UD Linux)
required for multimedia re-direction and full multimedia functionality

UD3: also available as IGEL Zero Client.

IZ3 comes dedicated to one VDI session.

IZ3 RFX

Zero Client

Powerful and reliable desktop for accessing Microsoft Remote Desktop Services (RDS), including Microsoft RemoteFX and Microsoft VDI.

IZ3 HDX

Zero Client

High-performance and reliable desktop for accessing Citrix XenDesktop and XenApp.

IZ3 Horizon

Zero Client

Reliable and powerful desktop with a long service life for accessing VMware Horizon.
