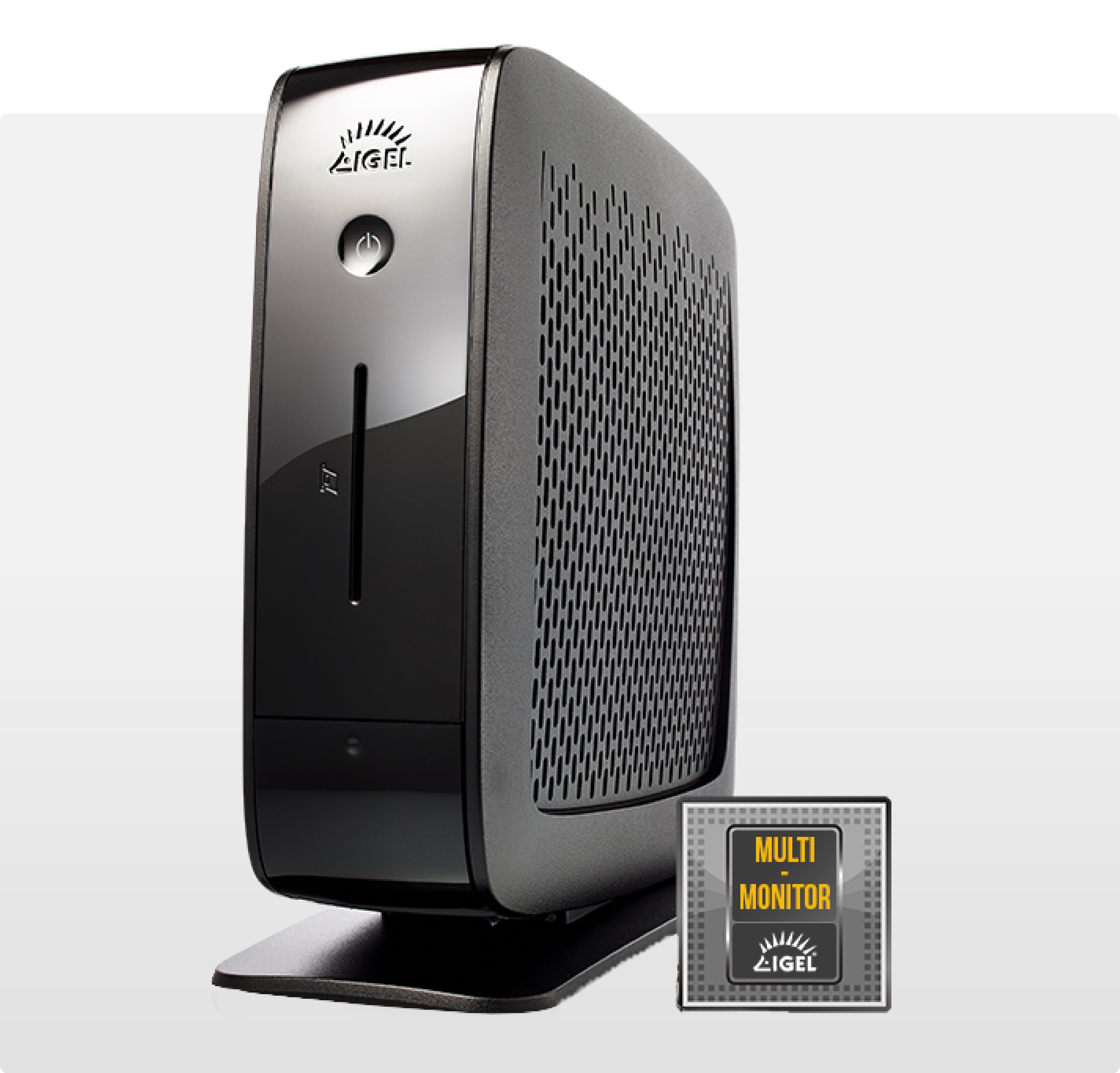

IGEL UD7 Universal Desktop Thin Client

IGEL UD7

Universal Desktop Thin Client

Designed for the user that needs multiple high quality display, application performance and unified communications. The UD7 delivers up to 4 displays through DisplayPort in real 4K resolution at 60 Hz delivering maximum performance without compromise. IGEL sets a new standard in high quality multi monitor thin client computing with its most powerful hardware platform yet.

FREE HARDWARE

IGEL-OS

IGEL Universal Desktop Operating Systems are available in both IGEL OS 10 and Microsoft Windows 10 IoT.

FIND LATEST FIRMWARE VERSIONS

UMS

Every IGEL thin client, whether hardware or software, automatically includes the Universal Management Suite, UMS. This free, industry-leading endpoint management system lets you quickly and securely transform all endpoints into easily managed workspaces.

MORE ABOUT THE UMS SOFTWARE

  • icon

    Maximum Performance

    The highest processor and graphics performance for the most demanding tasks, e.g. multimedia, Unified Communications, CAD applications and videoplayback in Full HD and H.264 acceleration.

  • icon

    Free PCIe slot

    Customize the UD7 for individual needs via PCIe expansion cards, e.g., fiber optic network cards.

  • icon

    Multi-monitor support

    Parallel use of up to four digital monitors in real 4K and 60 Hz by DisplayPort and optional graphics card*.

  • icon

    Integrated smartcard reader (optional)

    Excellent for highly secure two factor authentication and fast login.

  • icon

    Connectivity Bar (optional)

    Expand your device with a parallel port and WLAN or an anti-theft USB port.

  • icon

    No moving parts, e.g. cooling fans

    Because it contains no moving parts, the UD7 makes almost no noise and is durable – even with high-performance usage.

    *Additional graphics card for fourth monitor available from June 2018.

Software Maintenance

Regular, free firmware updates for IGEL OS and Windows 10 IoT UD Thin Clients up to three years after they are discontinued provides maximum investment protection. Sign up for our technical newsletter to find out as soon as firmware updates are released.

Free Technical Support

Register on our ticket system ITRS for our specialized technical support. We answer your questions and solve problems in the areas of IGEL OS and Microsoft Windows 10 IoT firmware, Universal Management Suite (UMS) and all other IGEL software solutions.

Warranty

After purchase, just register with us online, and all your IGEL Thin Clients UD2, UD3 and UD6 will be upgraded from a standard 2-year to a 5-year hardware warranty, according to our end customer hardware warranty declaration, at no additional cost. The UD Pocket, UD9, IZ2 and IZ3 series will be upgraded to a 3-year hardware warranty. The warranty upgrade does not cover any additional hardware options. View full warranty

IGEL is a registered trademark of IGEL Technology GmbH. All hardware and software names are registered trademarks of the respective manufacturers. Errors and omissions excepted. Subject to change without notice.

Certificates
CE, cULus, ICES-003, FCC Class B, RCM, VCCI, BSMI, Energy Star
For questions about product compliance or certification, please contact regulatory.compliance@igel.com.
Available Operating Systems
IGEL Linux 10 (LX)
Microsoft Windows 10 IoT (W10)
Management
IGEL Universal Management Suite included
Form Factor
Standard
Processor
AMD RX-216GD 1.6 GHz (Dual-Core) up to 3.0 GHz (Boost-Mode)
Chipset
AMD R-Series
PCIe-slot
1 x low profile
RAM (DDR4)
4GB
Flash Memory (SATA SSD)
4 GB (LX)
32 GB (W10),
larger SSD modules on request
Graphics Chipset
Radeon R5 Series
Video Memory
64-512 MB Shared Memory
Ports / Supported Resolutions
3x DisplayPort 1.2
(2x max. 3840×2160 @60Hz; 1x max. 2560×1600 @60Hz or 3840×2160 @30Hz)
Ethernet
10/100/1000 Base-T
WLAN
optional (via connectivity bar)
Audio Chipset
Realtek High Definition Audio (ALC662)
Audio Ports
1 x line-out
1 x mic-in
1 x DisplayPort (Intel HD Audio)
Audio Speakers
1 x internal
PS/2
1 x keyboard
Serial
1 x
Parallel
1 x optional (via connectivity bar or USB-to-Parallel adapter)
USB 2.0
3x back;
1x optional: anti-theft USB, via Connectivity Bar
USB 3.0
2 x front
Security Lock
1 x back
Device (DxWxH), upright
232 x 99 x 242 mm with foot
232 x 68 x 227 mm without foot
Packaging (DxWxH), horizontal
297 x 366 x 125 mm
Weight
1.6 kg, with foot
Cooling
fanless convection
Operating Temperature
0 °C to 40 °C (vertical without VESA)
0 °C to 35 °C (vertical with VESA)
0 °C to 35 °C (horizontal, with rubber feet)
Operating Humidity
20% – 80%, non-condensing
Power (Input)
auto sensing 100~240 VAC / 50~60 Hz
Power Supply
external
Power Consumption: Idle / Sleep / Offline Mode
5.7 W / 1.2 W / < 0.8 W
Typical energy consumption per year (Energy Star)
ETEC = 23.1 kWh
ETEC,MAX = 33.0 kWh
VESA Mount (optional)
for mounting on the back of a monitor
Rubber Feet (optional)
for horizontal placement of the device
Additional Graphic Card (optional)
For the use of a fourth monitor
Connectivity Bar (optional)
Option 1: 1x parallel port and anti-theft USB port
Option 2: 1x parallel and 1x 802.11 a/b/g/n 2.4 GHz, 5 GHz WiFi
Built-in Smartcard Reader (optional)
for secure smartcard-based authentication
USB-to-Serial Adapter (optional)
for connecting peripherals that require a serial port
USB-to-Parallel Adapter (optional)
for connecting printers that require a parallel port
DisplayPort to DVI adapter (optional)
for connecting a monitor that requires a DVI port
Shared WorkPlace (optional)
it allows user-dependent configuration based on setting profiles
Multimedia Codec Pack (UD IGEL OS)
required for multimedia re-direction and full multimedia functionality
