IGEL UD9 Universal Desktop Thin Client

IGEL UD9

Universal Desktop Thin Client

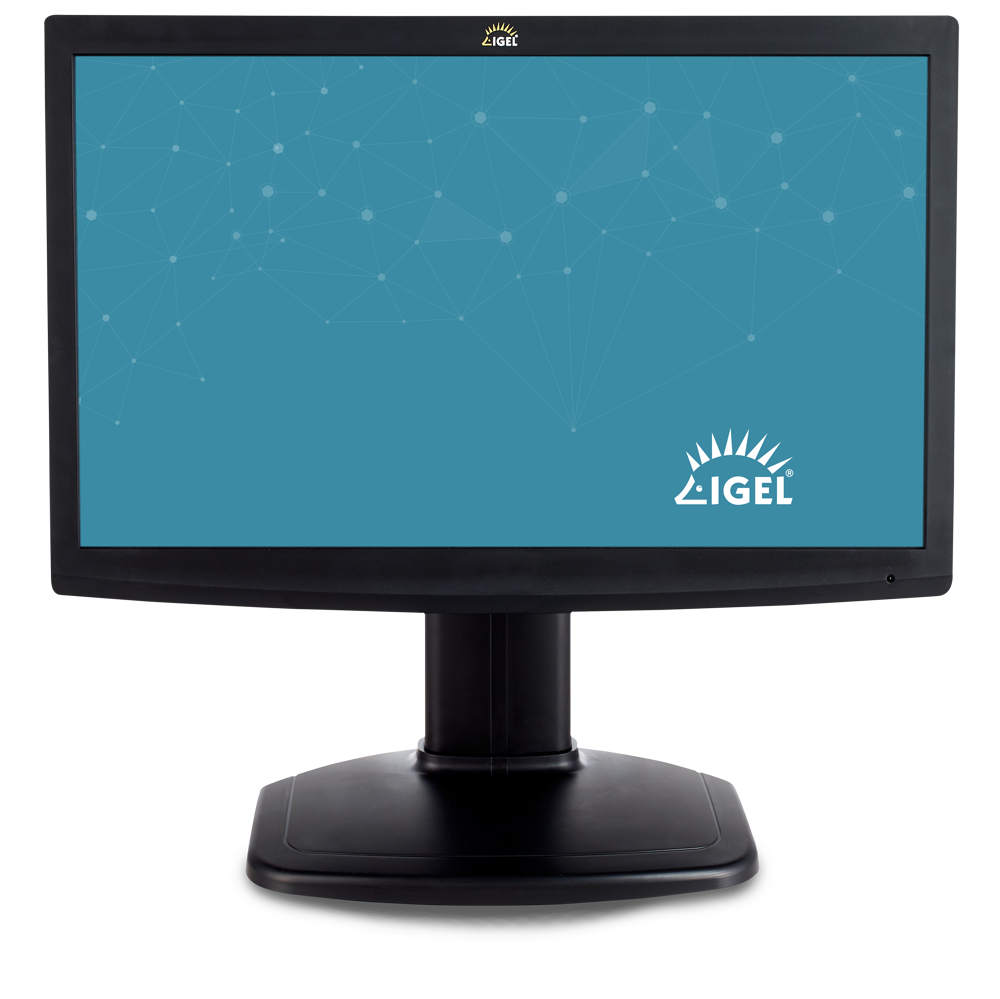

IGEL’s UD9 is a universal desktop Thin Client that is integrated into a 21.5″ widescreen display. The UD9 Universal Desktop Thin Client provides numerous interfaces and integrated features such as touchscreen, WLAN or a smartcard reader. The compact all-in-one supports a wide range of applications and due to its quad-core processor it allows high-performance access to all major central computing infrastructures.

FREE HARDWARE

IGEL-OS

IGEL Universal Desktop Operating Systems are available in IGEL Linux.

COMPARE AND FIND LATEST FIRMWARE VERSIONS

UMS

Every IGEL thin client, whether hardware or software, automatically includes the Universal Management Suite, UMS. This free, industry-leading endpoint management system lets you quickly and securely transform all endpoints into easily managed workspaces.

MORE ABOUT THE UMS SOFTWARE

  • icon

    21.5″ LCD monitor (55 cm)

    Increased user comfort and productivity

  • icon

    All-In-One Thin Client

    Display with integrated Thin Client, small footprint, and optimized design

  • icon

    Touchscreen display (optional)

    Use without keyboard and mouse, e.g. as a kiosk or PoS

  • icon

    Integrated WLAN module (optional)

    Use of the latest wireless standard enables optimal connectivity even without wired network infrastructure

  • icon

    Integrated smartcard reader (optional)

    Excellent for highly secure two-factor authentication, shared desktops or roaming users

Software Maintenance

Regular, free firmware updates for IGEL Linux UD Thin Clients up to three years after they are discontinued provides maximum investment protection. Sign up for our technical newsletter to find out as soon as firmware updates are released.

Free Technical Support

Register on our ticket system ITRS for our specialized technical support. We answer your questions and solve problems in the areas of IGEL Linux, Universal Management Suite (UMS) and all other IGEL software solutions.

Warranty

After purchase, just register with us online, and all your IGEL Thin Clients UD2, UD3, UD5 and UD6 will be upgraded from a standard 2-year to a 5-year hardware warranty, according to our end customer hardware warranty declaration, at no additional cost. The UD Pocket, UD9, IZ2 and IZ3 series will be upgraded to a 3-year hardware warranty. The warranty upgrade does not cover any additional hardware options. View full warranty

IGEL is a registered trademark of IGEL Technology GmbH. All hardware and software names are registered trademarks of the respective manufacturers. Errors and omissions excepted. Subject to change without notice.

ud9_connections_de-min_en-min
Certificates
CE, TÜV-GS, cULus, FCC Class B, ICES-003, RCM, VCCI, BSMI, CCC, WEEE, RoHS, China RoHS, Energy Star
For questions about product compliance or certification, please contact regulatory.compliance@igel.com.
smartcardreader
Smartcard Reader
display90
Display Rotation 90°
touchscreen
Touchscreen
Available Operating Systems
IGEL Linux 5 & Linux 10
Management
IGEL Universal Management Suite included
Form Factor
Integrated
Processor
Intel Celeron J1900 1,99 – 2,42 GHz Quad-Core
Chipset
Intel Bay Trail SoC
RAM (DDR3L)
2GB (LX / W7+)
Flash Memory (SATA SSD)
4GB (LX)
4GB (W7)
8GB (W7+)
Graphics Chipset
Intel HD Graphics
Video Memory
128 – 512 MB shared memory
Ports / Supported Resolutions
1 x DisplayPort 1.2a (2560 x 1600) Dualview: Intern (FullHD) 1920 x 1080
Ethernet
10/100/1000 Base-T
WLAN
optional, 802.11 a/b/g/n
Audio Chipset
Realtek High Definition Audio (ALC269)
Audio Ports
1 x line-out
Audio Speakers
2 x internal
PS/2
1 x
Serial
1 x
USB 2.0
4 x
USB 3.0
2 x
Security Lock
1 x back
Size
21,5″
Aspect Ratio
16:9
Brightness
250 cd/m2
Contrast Ratio
1000:1
Viewing Angle
178/170
Response Time
1.5 ms
Device (DxWxH), upright
514 x 264 x 327 mm (with foot)
514 x 330 x 100 mm (without foot)
Packaging (DxWxH), horizontal
650 x 335 x 465 mm
Weight
8,12 kg (UD9), 9,26 kg (UD9 Touch)
Cooling
fanless convection
Operating Temperature
0 to 40 °C
Operating Humidity
30% – 90%, non-condensing
Input
auto sensing 100~240 VAC / 50/60 Hz
Power Supply
external
Power Consumption: Idle / Sleep Mode
24W / 3W
Typical energy consumption per year (Energy Star)
ETEC = 88,8 kWh
ETEC,MAX = 117,79 kWh
Built-in Smartcard Reader
for secure smartcard-based authentication
Integrated WLAN Module
for environments with no physical network infrastructure
Touchscreen Display
for public facing or space-constraint environments
USB-to-Serial Adapter
for connecting peripherals that require a serial port
USB-to-Parallel Adapter
for connecting printers that require a parallel port
DisplayPort-DVI-Adapter
for connecting a monitor that requries a DVI port
Shared WorkPlace
it allows user-dependent configuration based on setting profiles
Multimedia Codec Pack (UD Linux)
required for multimedia re-direction and full multimedia functionality
