Medix 24 v2

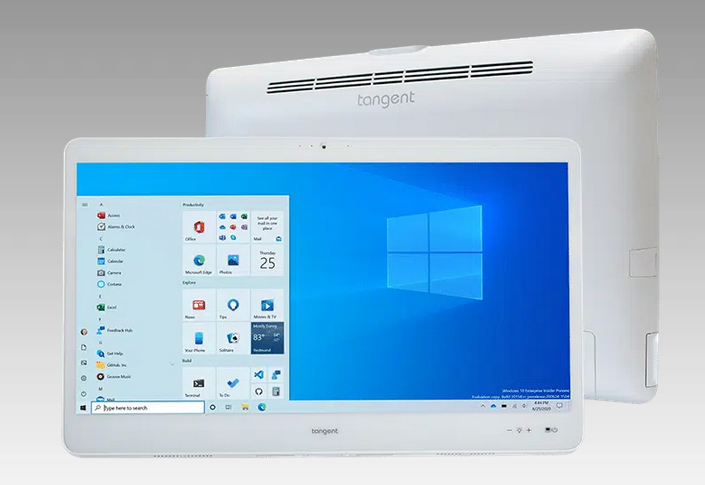

Medix 24 v2 Medical Grade Computer

The Tangent Medix 24 is a 24" Medical Grade Computer

that features an Intel Core i Series processor, 2x DDR4 SO-DIMM with up to 64GB

RAM, high-performance NVMe storage, UPS battery backup, IP65 front & IPX1

back panels, antimicrobial enclosure, fanless design, TPM, and optional vPro.

Contact Us

Product Details

Display:

LCD Size: 23.8″ (16:9)

Max Resolution 1920 x 1080 (FHD)
Brightness (cd/m2 ) 250 cd/m2

Contrast Ratio 1000:1

LCD Color 16.7M

Pixel Pitch (mm) 0.274 x 0.274mm

Viewing Angle (H-V) 178 (H) – 178 (V)

Touch:

Touch Screen: Projected capacitive w/ 10 points

Touch Controller: EETI

System Processor: Intel 11th Gen. Core i7/i5 Processors

System Chipset: Tiger Lake U SOC

Graphics Controller: Intel Iris Xe Graphics (Core CPU)

LAN Chipset: 1 x GbE Intel I219-LM and 1 x GbE Intel I210

Audio: Realtek ALC256

System Memory: Up to 64GB DDR4 3200 (2 x SO-DIMM)

BIOS: Insyde 64Mbit

TPM :
TPM 2.0 Nuvoton (dTPM)

vPro (CPU dependent)


Storage:


M.2 SATA: 1 x M.2 2280 “M” Key (SATA)

M.2 Expansion:
1 x M.2 (M key) supports M.2 2280
1 x M.2 (E key) supports M.2 2230 (Reserve for Wi-Fi)

Other Features:
Cooling Method: Fanless w/ heat pipe

Internal Speaker: 2 x 3W speakers

OSD Buttons: 4 x Soft touch buttons
(LCD Off/Power/Disable/Touch/Brightness)

WebCam: 1 x 2Mpixel camera w/ sliding cover
Active noise cancellation mic (ANC)

Embedded RFID Internal Dual Frequency RFID – SSO

CD Read/Write Slim Internal DVDRW 24x8x6x (Optional)

Refer to Tangent Medix 24 Spec Sheet for
additional information.

Highlights

• Intel 11th Gen. Core i7/i5 processors

• Fanless Construction with Heat Pipes

• Optional Integrated RFID

• Optional UPS Battery Backup

• Optional CD/DVDROM

• Built-in Reading Light
